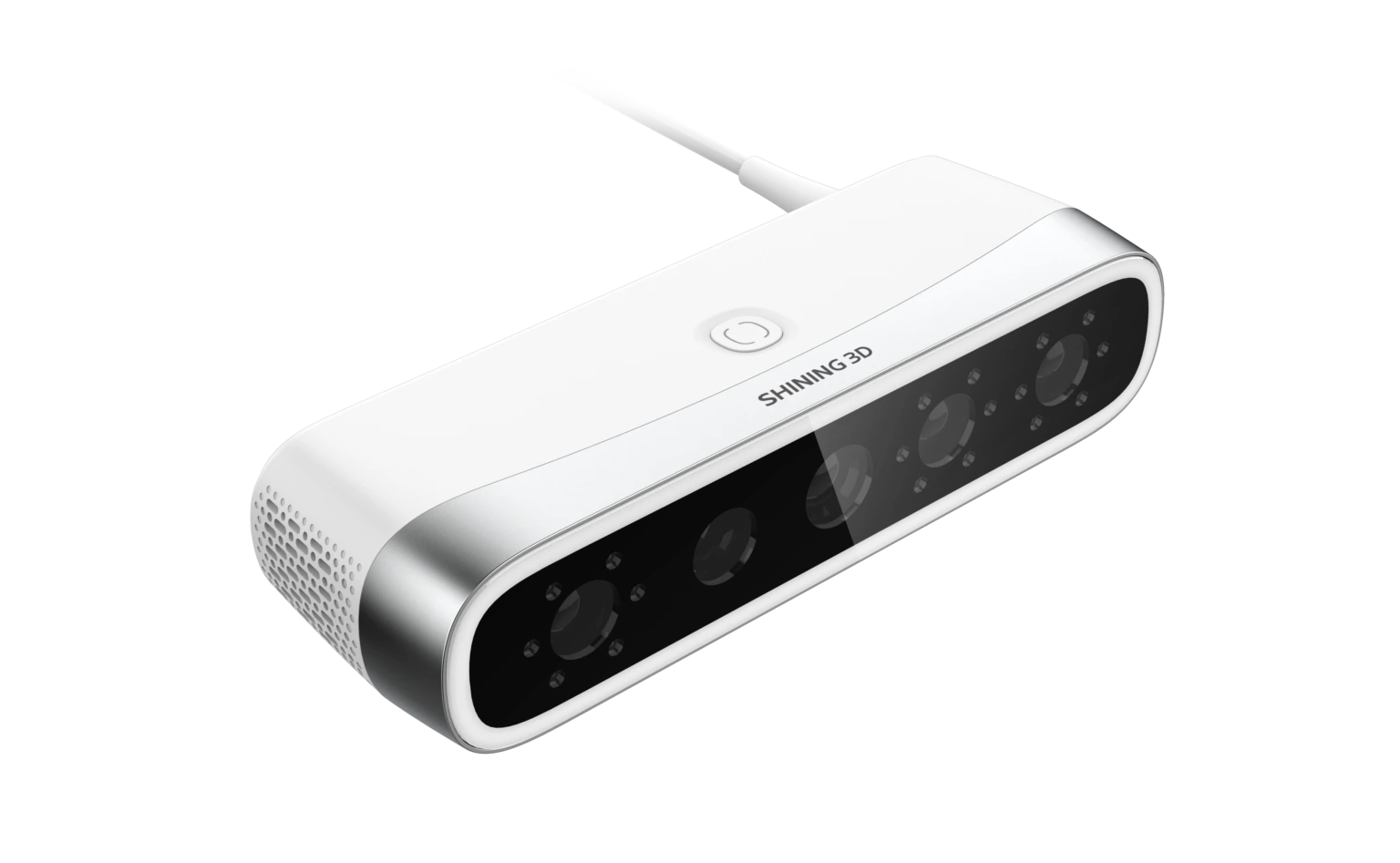

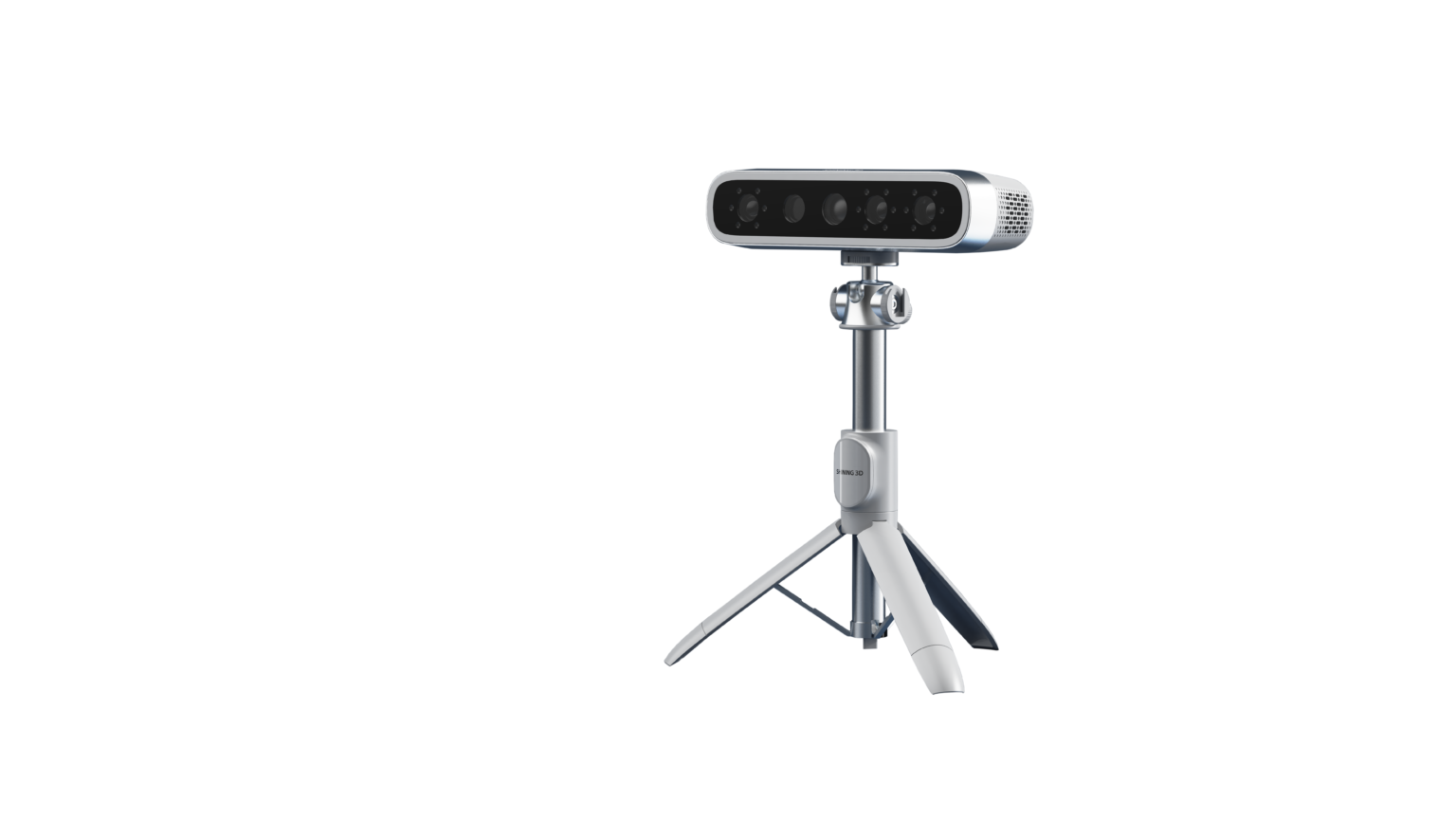

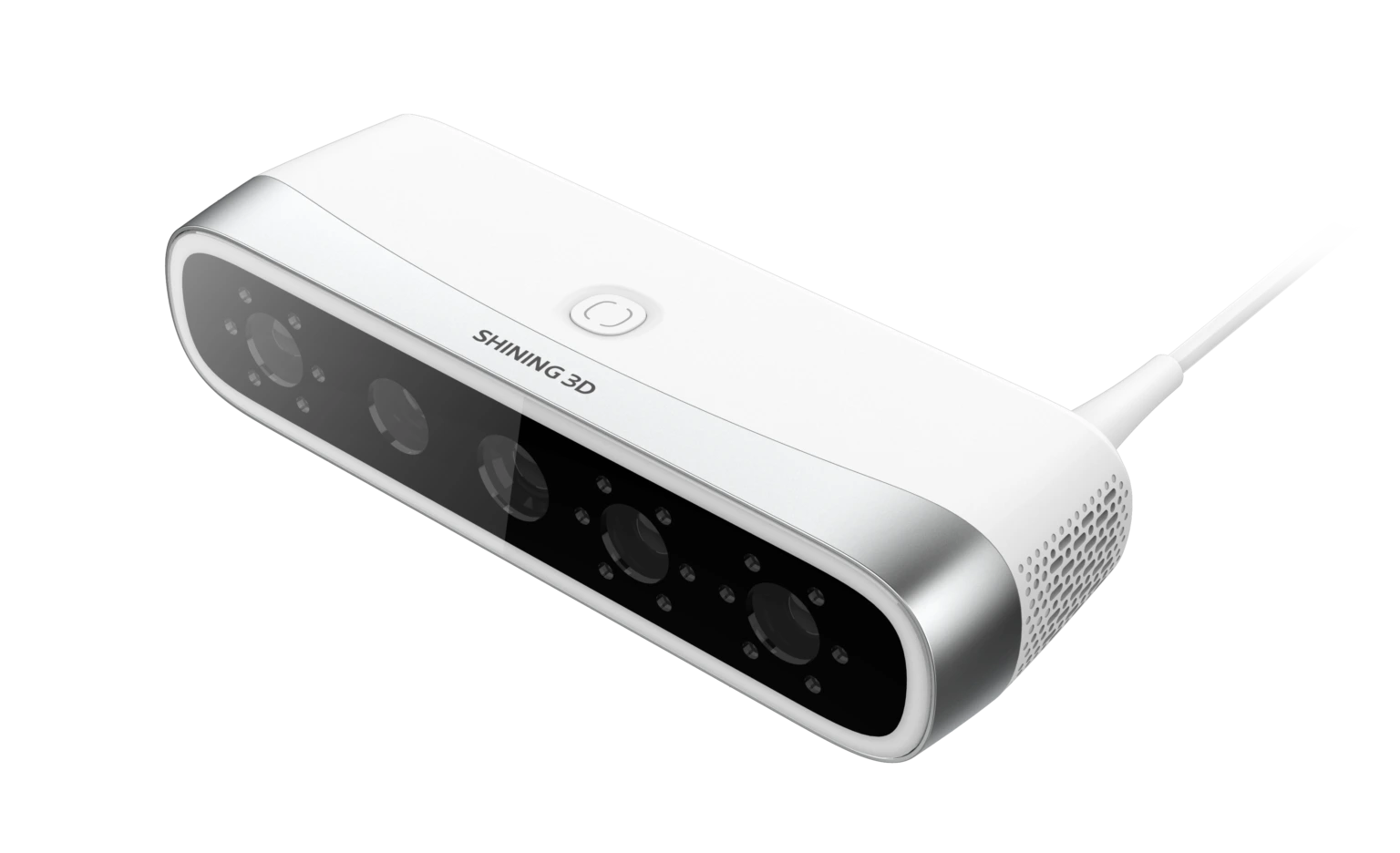

MetiSmile 3D Face Scanner
Clear Fusion Lab is proud to present the revolutionary MetiSmile 3D Face Scanner.
MetiSmile is the first face scanner developed and produced by SHINING 3D exclusively for dentistry. It can quickly capture the facial information to create 3D model and assist in clinical diagnosis with its advanced software.
Revolutionary
Fast Scan Speed
Ortho Simulation
Mandibular Trajectory Tracking
Facial Features Measurement & Comparison
Automatic Alignment of Intraoral and Facial Data
Powerful Hardware
In just 10 seconds this highly perceptive scanner can take photos of patients from multiple angles to simultaneously construct a 3D facial data.
High Accuracy

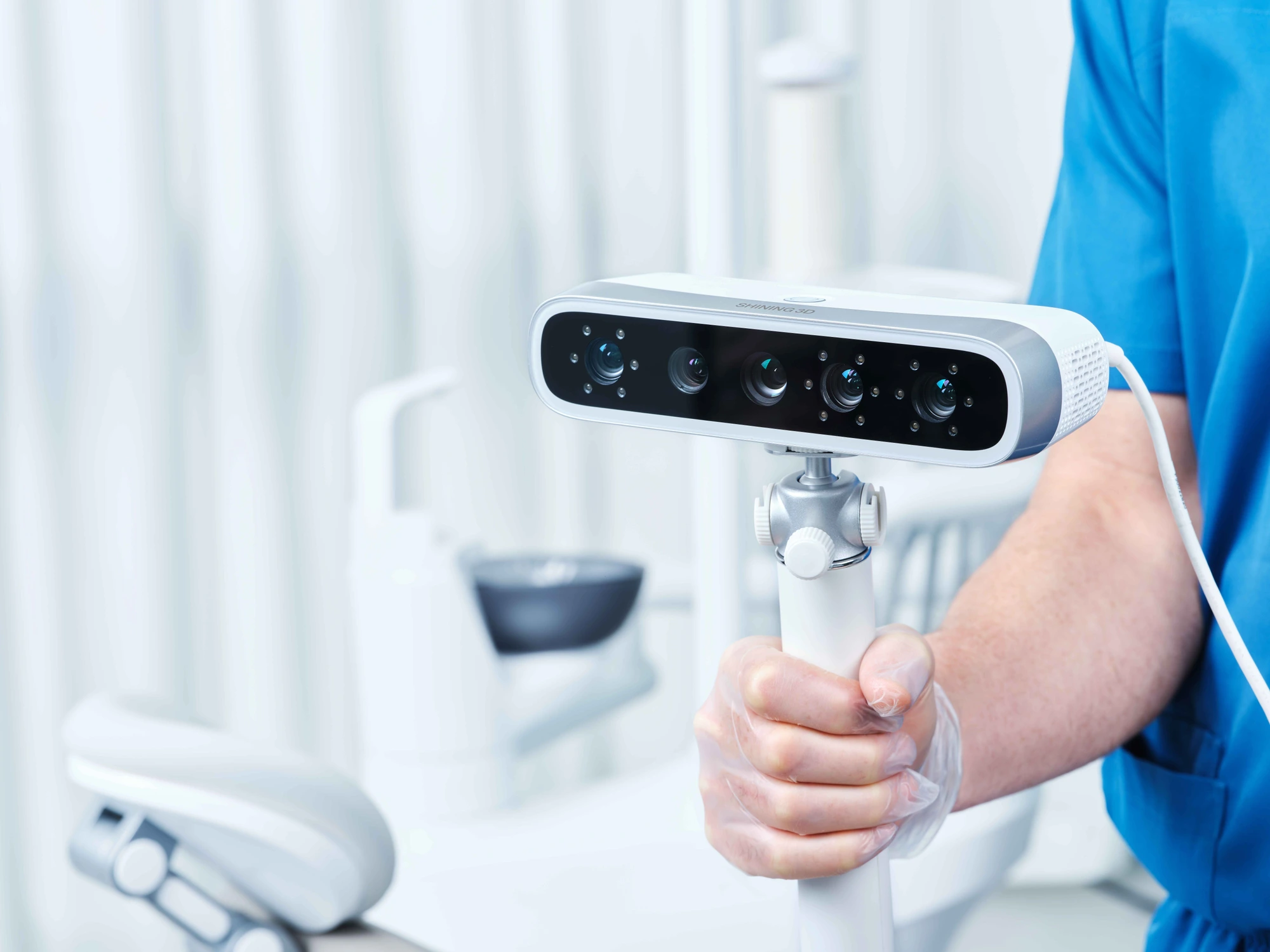

Three 1.3 MP data acquisition cameras and one 5.0 MP HD texture camera produce scan accuracy within 50um. MetiSmile also captures elevated details of the teeth.
High-fidelity Texture
The exceptional texture camera of the MetiSmile can accurately record and display facial color that appears realistic to the patient.
Technical Specifications
- Resolution: Data Acquisition Camera: 1.3 Mega Pixel
HD Texture Camera: 5.0 Mega Pixel - Accuracy: 50μm
- Field of View: With working distance 500mm, the FOV is 210*270mm
- Output Format: PLY, OBJ, STL
- White LED color temperature: 5500K
- Dimension: 215*50*75mm
- Weight: 800g
- Power Supply: Input: AC100-220V~, 50/60HZ, 1.5A
- Output: DC12V, 7.0V
With its innovative features and cutting-edge technology, the MetiSmile 3D Face Scanner is set to redefine dental imaging and streamline clinical workflows. Experience the future of dentistry with Clear Fusion Lab's MetiSmile.
Advanced Software
Auto Alignment Between Facial Scan Data and Intraoral Scan Data
The software will align the facial and intraoral scans which displays the patients' facial and oral information in a comprehensive way. The scans are overlapped to provide a better view and prospective for digital smile design that assists in creating more aesthetic restorations for patients.
Ortho Simulation
Some of the features of the ortho simulation module include automatic lip extraction and one-click tooth segmentation, etc. The intelligent before and after orthodontic treatment display is enhanced by the integration of the facial scan information.
Facial Feature Measurement & Comparison
The intuitive software is capable of recognizing 3D facial features. It can measure the distance of facial data, and compare facial changes before and after treatment. These software tools help dentists diagnose and evaluate treatment more effectively. It also improves the patient's satisfaction with the treatment plan while adding visual presentation.
Mandibular Trajectory Tracking
Using mandibular trajectory tracking, the dentist can acquire dynamic occlusion data. This module includes left and right lateral detection, centric, and open occlusion. It delivers detailed occlusion information for accurate diagnosis, design, and treatment.
Cloud Platform
SHINING 3D’s cloud data platform enables data transmission, making it convenient for data transfer and communication between clinics and dental labs.
Pediatric Dental Care
Pediatric Dental Care
Pediatric Dental Care
I’m really impressed by MetiSmile. It not only delivers comfort, but also displays the oral data in great detail and color on the monitor.
