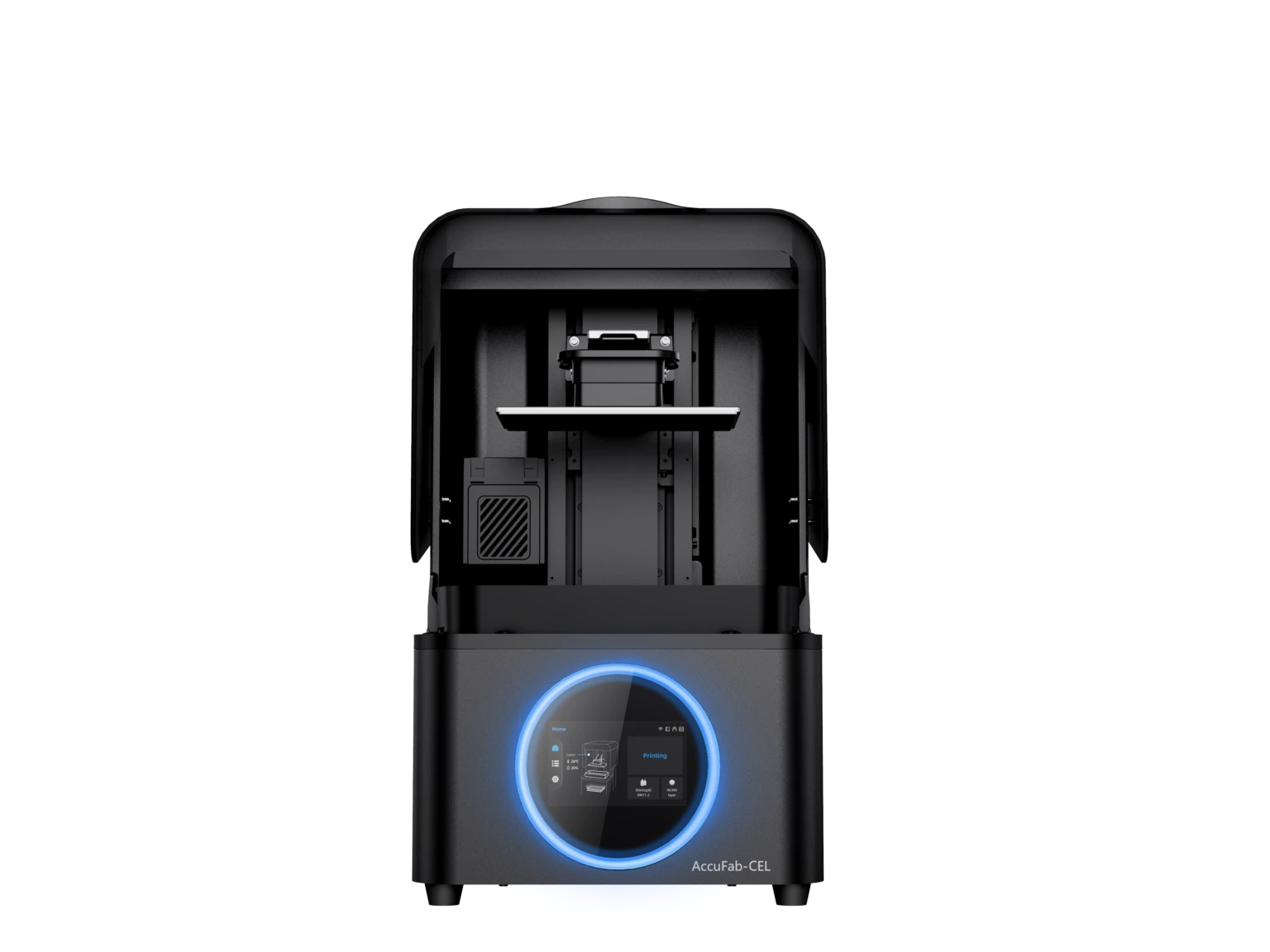

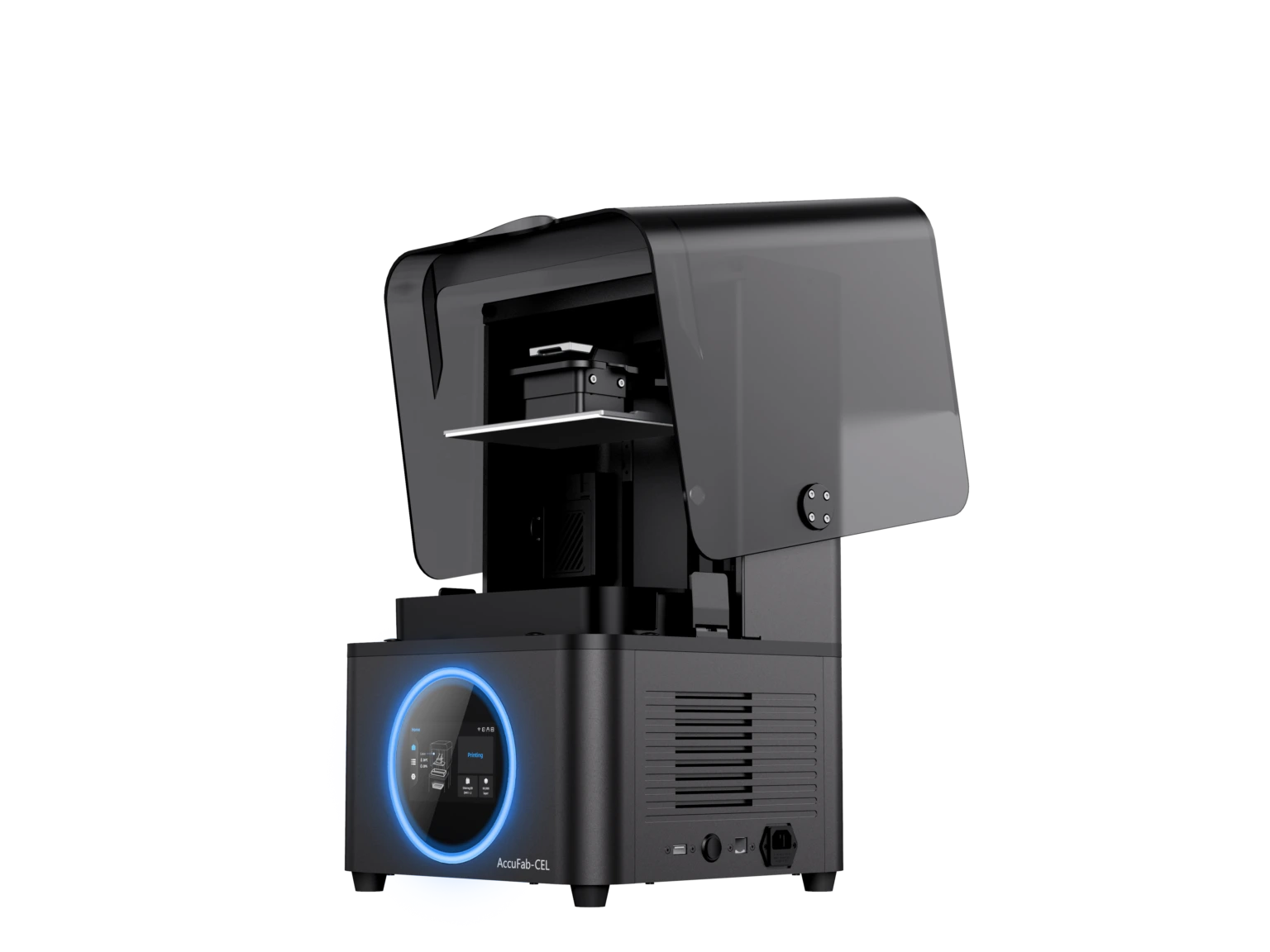

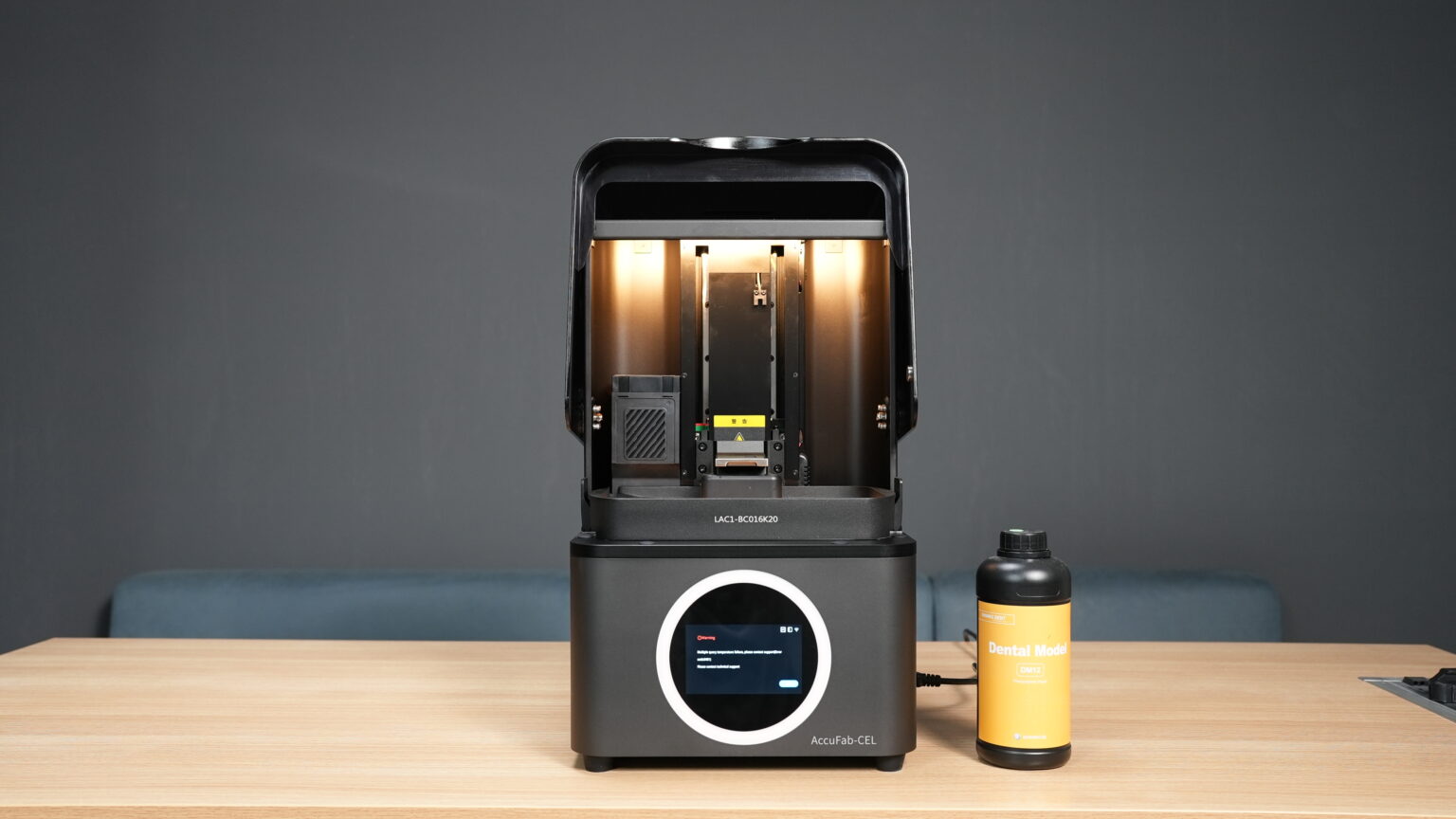

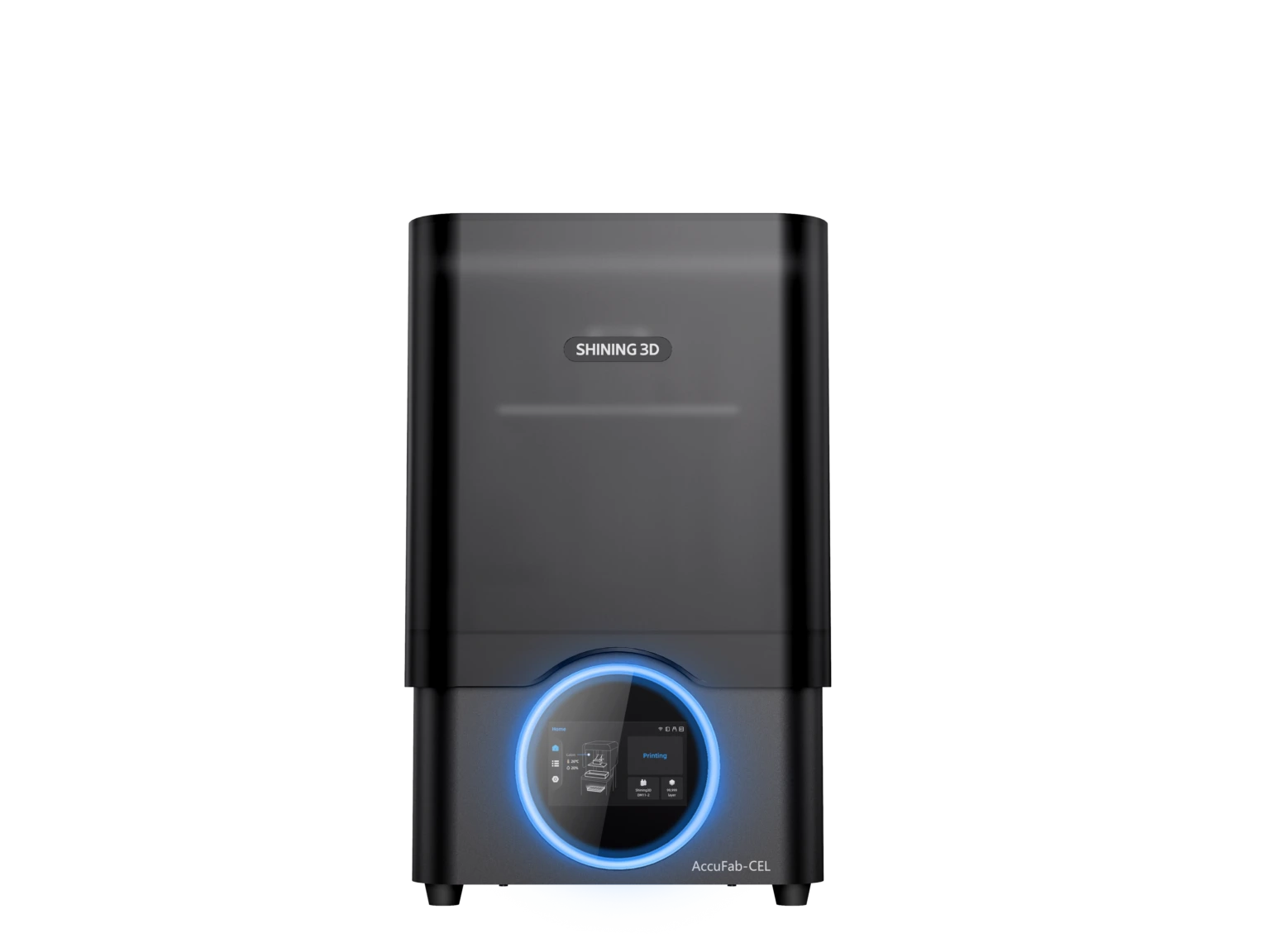

AccuFab-CEL Dental 3D Printer

Clear Fusion Lab is proud to present the revolutionary AccuFab-CEL Dental 3D Printer. AccuFab-CEL has significantly improved its printing speed, especially in full-platform printing. With SHINING 3D’s self-developed mainboard and high-performance light panel, the AccuFab-CEL offers a premium-level printing experience for users in the 3D printing field.

Uniformity and Accuracy

Light Board Uniformity with High Accuracy

AccuFab-CEL has achieved a high level of printing accuracy, reaching ±35μm. The even distribution of light plays a crucial role in printing accuracy. SHINING 3D has developed a new“Collimated Programmable Lithography” technology. When it is evenly distributed, the printed models have higher performance and accuracy.

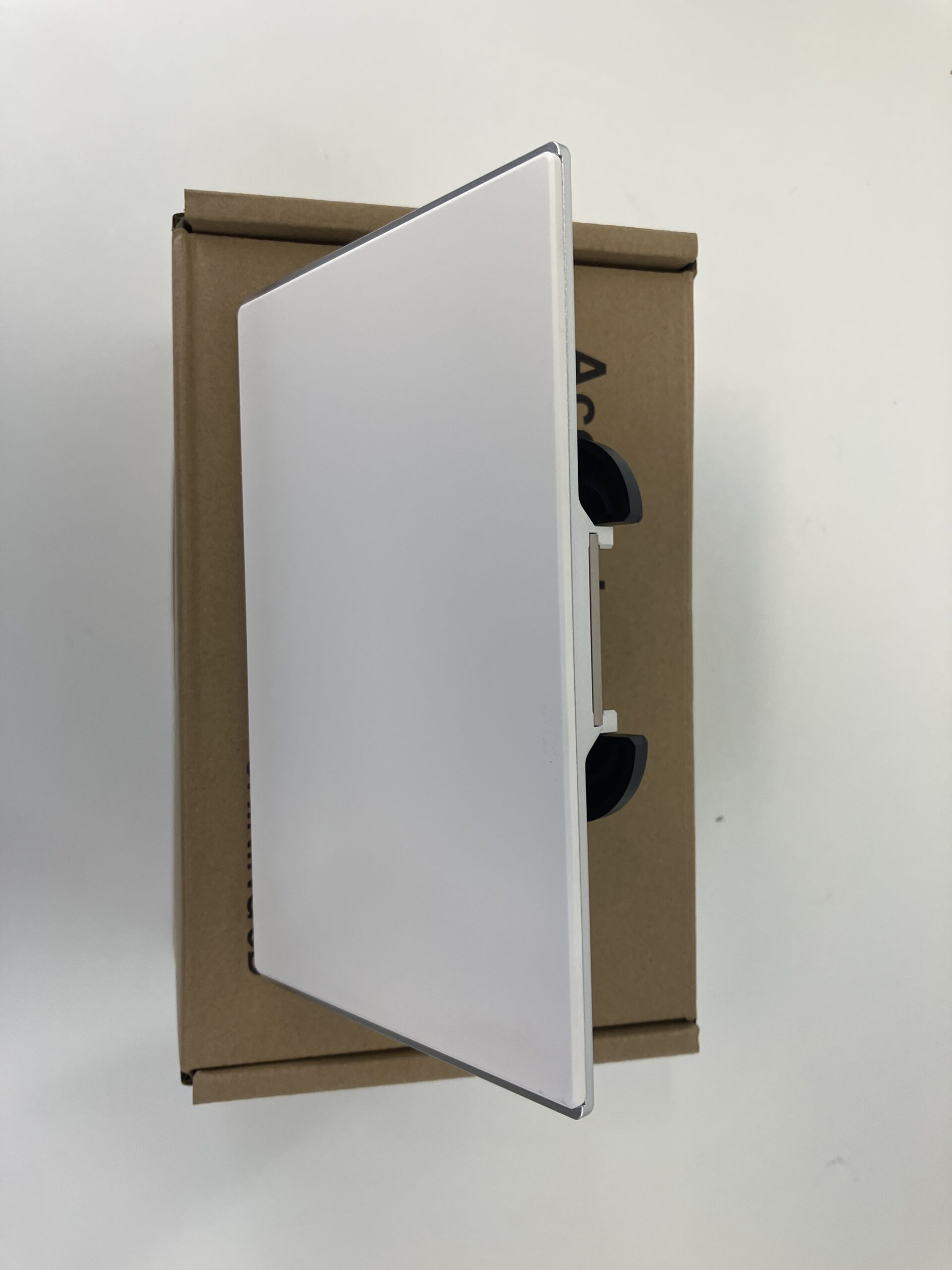

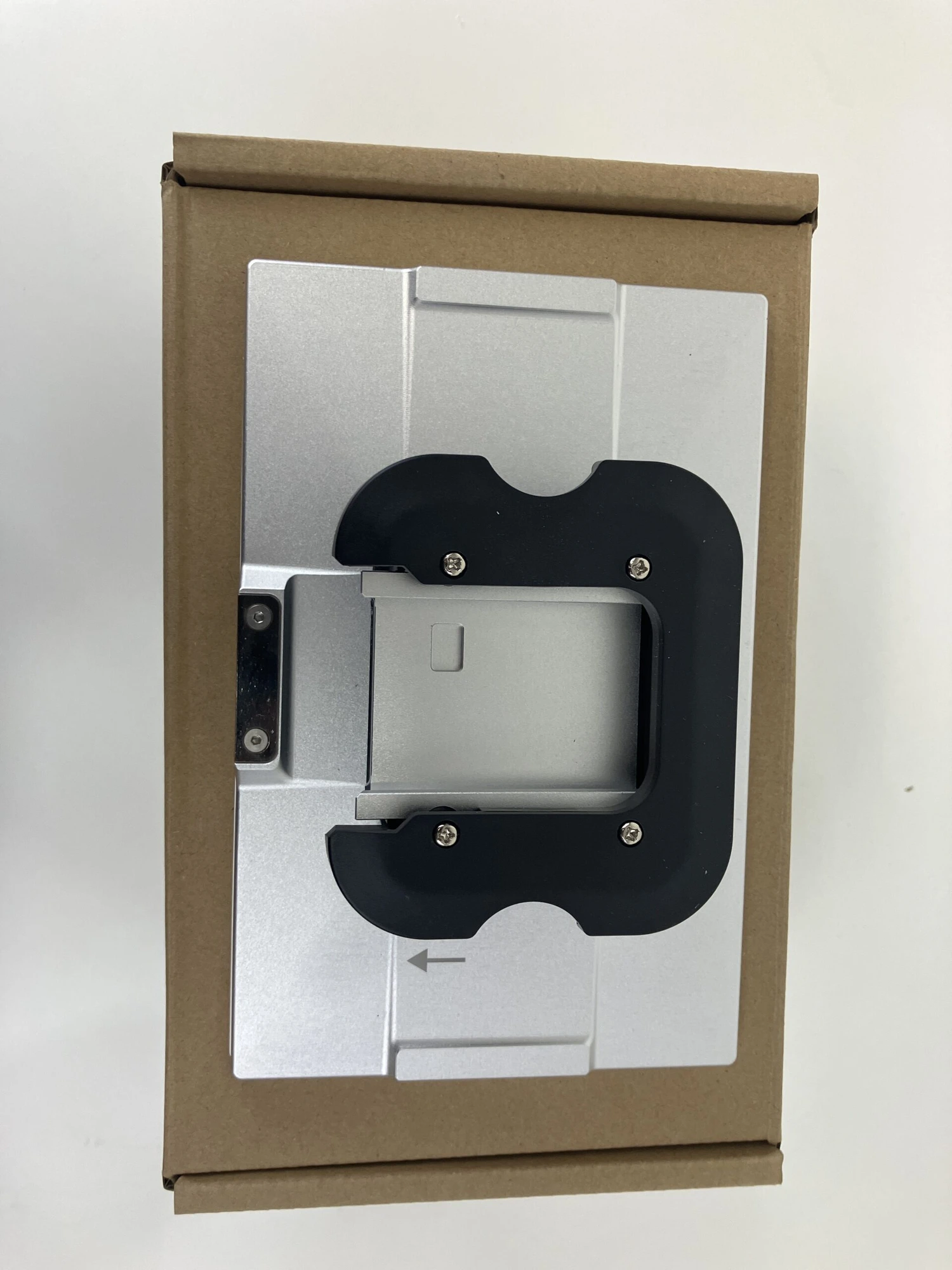

Multi-Size Ceramic Platform

Choosing AccuFab-CEL provides the option of small and large ceramic platforms. The chemically inert and biocompatible ceramic layer ensures safety during printing and prevents any residues from attaching to the printed products, making them non-toxic and safe when placed in the patients’ mouth. The use of a ceramic platform also improves the overall print quality by reducing contamination.

Technical Specifications

  • Printer Size: 360 x 360 x 530 mm
  • Printer Weight: 22 kg
  • Print Volume (x/y/z): 70 x 70 x 180 mm / 192 x 120 x 180 mm
  • Resolution: 5760 x 3600
  • Print Speed: Max 100 mm/h (depend on different material and layer)
  • Layer Thickness: 50 μm~100 μm (adjustable)
  • Accuracy: ± 35 μm
  • Connectivity: USB/Wi-Fi/Ethernet

With its innovative features and cutting-edge technology, the AccuFab-CEL Dental 3D Printer is set to redefine dental imaging and streamline clinical workflows. Experience the future of dentistry with Clear Fusion Lab's AccuFab-CEL.

One-Click Lock

AccuFab-CEL has upgraded the platform lock from a knob to a one-click lock, enhancing the user experience. The one-click lock has only two status options: On or Off, providing clear visibility of the status and allowing clients to start printing easily.

Real-Time Cabin Environment Detection and Heating

The cabin temperature and humidity are continuously monitored during printing. The results are displayed on the printer's touch screen, warning users of any conditions that may cause printing failure.

Enhanced Z Axis Movement System

The enhanced Z-Axis movement system provides a quieter printing experience, creating a more comfortable working environment without excessive noise. The increased speed accelerates the printing process, delivering faster results to clients.

Six Core CPU Mainboard with 5G Hz Connection

The six core CPU mainboard supports a 5G Hz connection and ensures the long-term use of AccuFab CEL. The proprietary CPU offers superior throughput for data-intensive tasks, enabling rapid and efficient processing during the slicing phase of printing. The more efficient the processing time, the quicker the printing.

Cloud Platform

SHINING 3D’s cloud data platform enables data transmission, making it convenient for data transfer and communication between clinics and dental labs.
