New Dental Face 3D Scanner
MetiSmile
Beyond Smile
Beyond Smile

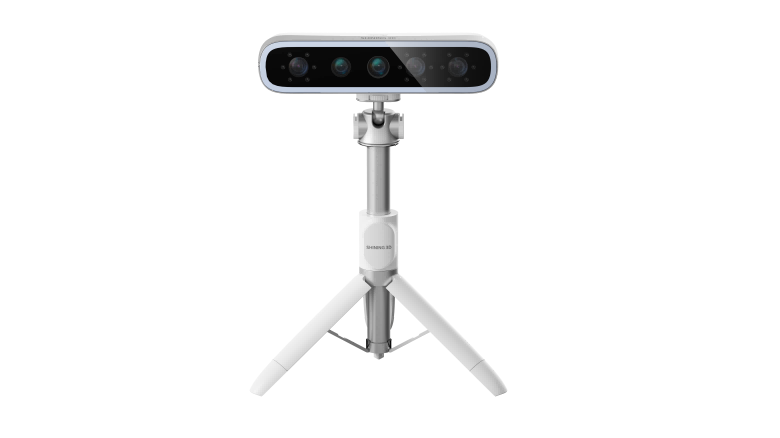

MetiSmile is the first face scanner developed and produced by SHINING 3D exclusively for dentistry. It can quickly capture the facial information to create 3D model and assist in clinical diagnosis with its advanced software.
From here, boost the treatment effect and visualize the treatment experience. Say hello to MetiSmile!
MetiSmile Unboxing by Dr. Mark Kleive
Dr. Isaac Tawil’s Overview of SHINING 3D Dental’s 3D Facial Scanner

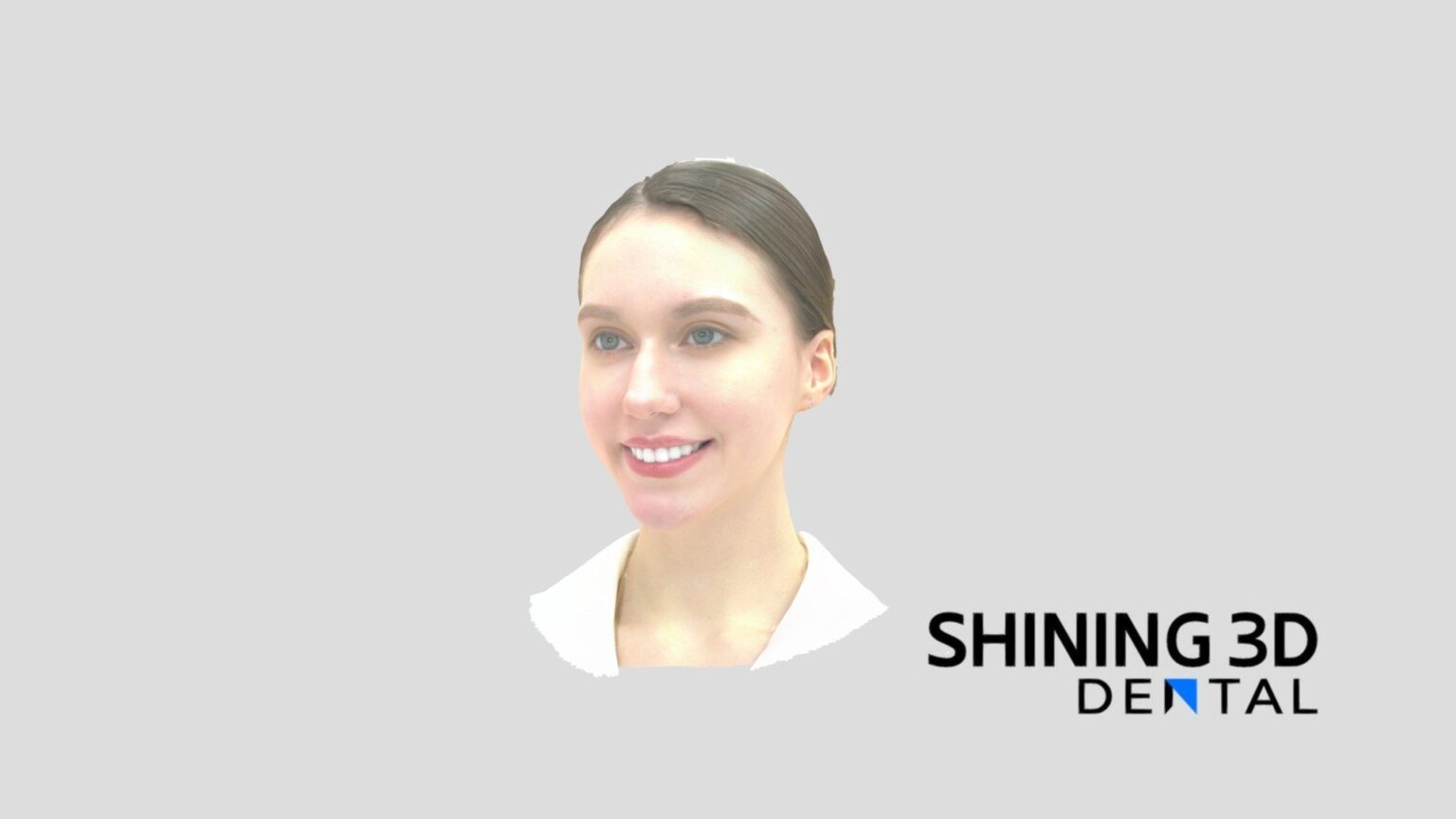

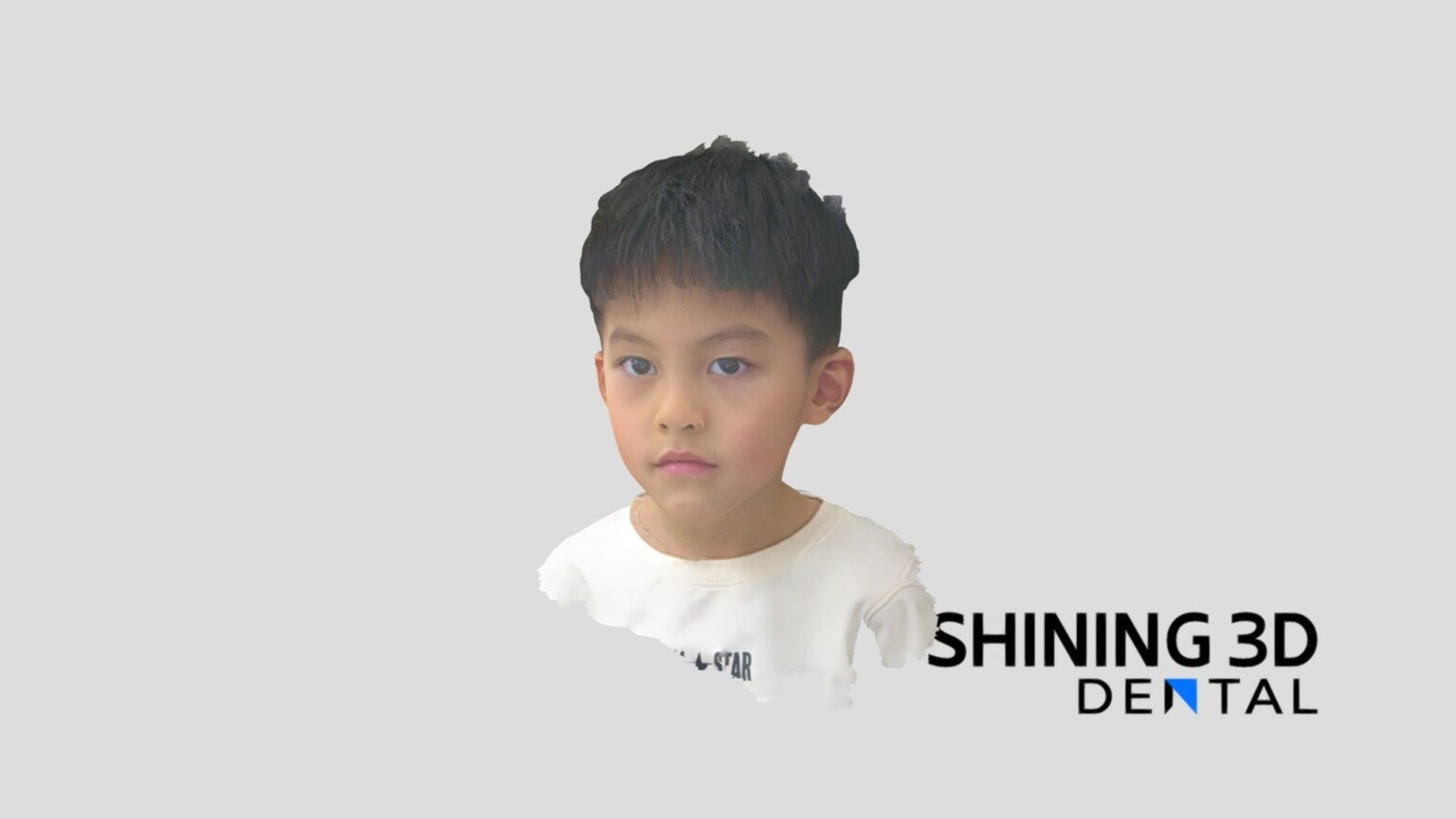

Fast Scan Speed
In just 10 seconds this highly perceptive scanner can take photos of patients from multiple angles to simultaneously construct a 3D facial data.
High-fidelity Texture
The exceptional texture camera of the MetiSmile can accurately record and display facial color that appears realistic to the patient.
High Accuracy
Three data acquisition cameras and one 5.0 MP HD texture camera produce scan accuracy within 50μm. MetiSmile also captures elevated details of the teeth.
Auto Alignment
Between Facial Scan Data and Intraoral Scan Data
DICOM Data Integration to Create a Virtual Patient
Enhance accuracy in the design process for technicians
The integration of DICOM data, facial data, and intraoral scan data enables the creation of virtual patients, equipping dentists with a comprehensive set of information for precise diagnoses and enhanced communication.
Ortho Simulation
Facilitates effective communication between dentists and patient
Simulating facial transformations prior to orthodontic treatments creates a more lifelike experience, rendering the entire process realistic and vivid.
MANDIBULAR TRAJECTORY TRACKING*
MANDIBULAR TRAJECTORY TRACKING*
Using mandibular trajectory tracking, the dentist can acquire dynamic occlusion data. This module includes left and right lateral detection, centric, and open occlusion. It delivers detailed occlusion information for accurate diagnosis, design, and treatment.
* Optional function with extra cost, coming soon.
Facial Features Measurement and Comparison
The intuitive software is capable of recognizing 3D facial features. It can measure the distance of facial data, and compare facial changes before and after treatment. These software tools help dentists diagnose and evaluate treatment more effectively.
TECHNICAL SPECIFICATIONS
| Resolution | 3840 x 2400(4K) Px |
| Print Volume (W x D x H) | 70 x 70 x 150 mm / 192 x 120x 180 mm |
| Print Speed | Max 50 mm/h （depends on layer thickness and materials） |
| Accuracy* | ±0.05 mm |
| Layer Thickness | 50/75/100 μm |
| Printer Size | 360*360*530 mm |
| Printer Weight | about 19 kg |
| Connectivity | USB/Wi-Fi/Ethernet |
* Based on Shining 3D internal test standard.
